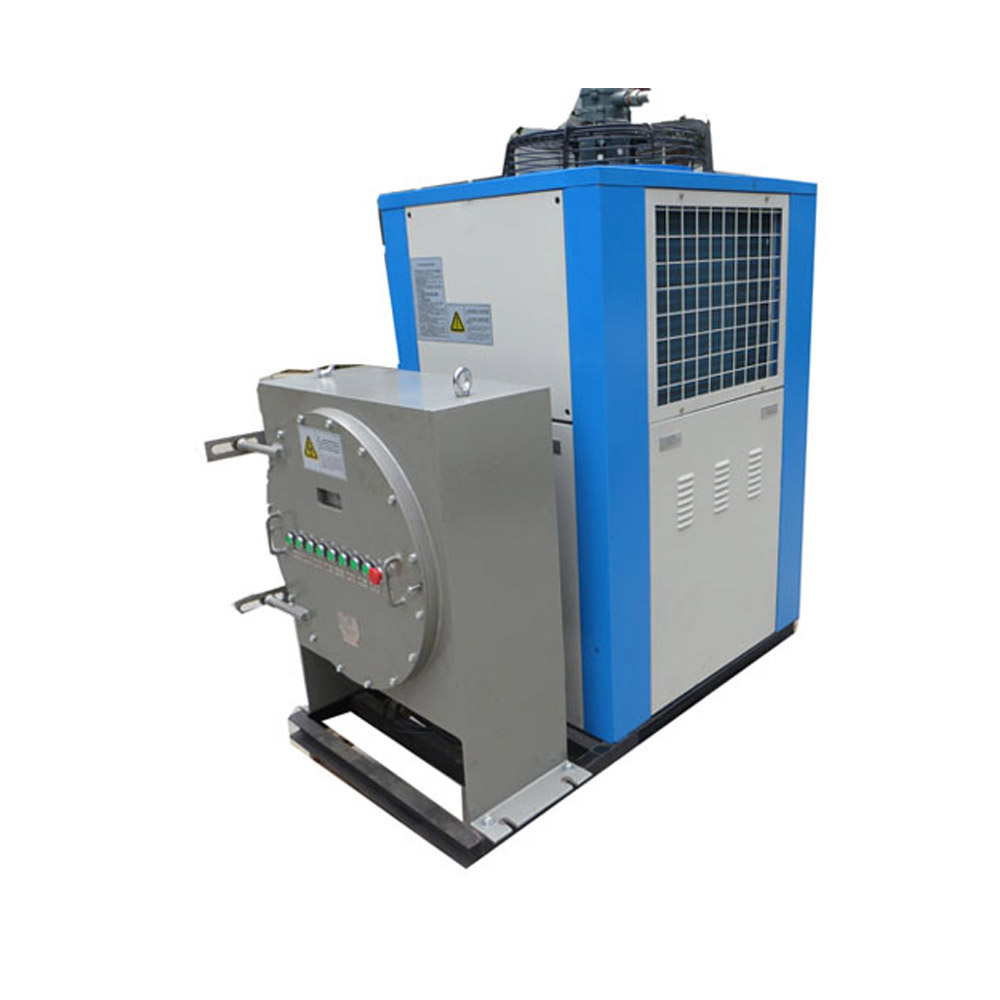

Air Cooled Water Chiller -5 Degree

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

Features1. Compressor: Vortex type compressor, adopt international brand fully enclosed vortex type maintenance free compressor2. Heat exchanger: 5HP or bigger model, use high efficiency shell and tube evaporator and condenser 3. Control system: our own cotrol system, simple operation, accurate control;4. Man-machine interface: the use of well-known brand controller and control interface, digital display, one key operation5. Water tank: adopt the overall design and manufacture, the built-in standard high efficiency centrifugal pipeline pump, 304 stainless steel storage tank6. In order to adapt to the different requirements of all walks of life, the use of different series of scroll compressor, refrigeration water temperature from 15 degrees to -35 degrees, sophisticated technology to ensure the stability of the work under the extreme conditions7. The choice of environmental protection type R407C or R134a refrigerant.

Air-cooled chiller parameters(output tem -5℃)

Model			UNIT		SLPA-
					3.1c		5.1c	8.1c	10.1c	12.1c	15.1c
Cooling capacity			Btu		19107		31390	55616	63122	71311	89394
			RT		1.6		2.6	4.6	5.3	6.0	7.4
			Kw		5.6		9.2	16.3	18.5	20.9	26.2
			×10³Kcal/h		4.8		7.9	14.0	15.9	18.0	22.5
Total Power			KW		3.0		4.7	7.3	8.8	9.8	13.0
Total Current			A		5.4		8.6	13.4	16.1	17.9	23.8
Compressor		Qty	set		1.00		1.00	1.00	1.00	1.00	1.00
		Input power	kw		2.4		3.9	6.4	7.2	8.2	11.4
		Operation Current	A		4.3		6.9	11.4	12.8	14.6	20.3
Condenser Fans		Type	Efficiency copper and Blue hydrophilic aluminum Finned heat exchanger
		Input power	kw		0.19		0.42	0.38	0.84	0.84	0.84
		Input Current	A		0.50		0.85	1.00	1.70	1.70”	1.70
Evaporator		Type	Horizontal shell-and-tube/Coil type high efficiency copper heat exchanger
		Chilled water Flow	L/min		16		26	47	53	60	75
		Water pipe connection	mm		25		25	25”	25	32	32
Chilled Water Pump		Type	High efficiency, low noise
		Input Power	Kw		0.37		0.37	0.55	0.75	0.75	0.75
		Head	m		16		21	22	19	17	25
Refrigerant		Type	R22
Water tank Indicating Volume			Liter		70		75	100	115	145	250
Safety protection			high and low pressure protection, overload protection, over temperature protection, phase sequence protection, etc.
Dimensions (LWH)	Length		mm	1150		1150		1200	1350	1400	1600
	Width		mm	700		700		850	850	850	1000
	High		mm	1120		1120		1550	1550	1550	1600
Total Weight			KG	150		200’		285	350‘	450	600

Model			UNIT	SLPA-
				20.2c	25.2c	30.2c	40.2c
Cooling capacity			Btu	126244	142280	178789	240887
			RT	10.5	11.9	14.9	20.1
			Kw	37.0	41.7	52.4	70.6
			×10³Kcal/h	31.8	35.9	45.1	60.8
Total Power			KW	16.6	18.6	25.8	34.5
Total Current			A	30.5	34.1	47.2	63.2
Compressor	Qty		set	2.00	2.00	2.00	2.00
	Input power		KW	14.4	16.4	22.8	30.5
	Operation Current		A	25.6	29.2	40.6	54.3
Condenser Fans	Type		7
	Input power		kw	1.14	1.14	1.50	2.52
	Input Current		A	3.00	3.00	3.84	5.10
Evaporator	Type		Horizontal shell-and-tube/Coil type high efficiency copper heat exchanger
	Chilled water Flow		L/min	106	119	150	202
	Water pipe connection		mm	40	40	50	50”
Chilled Water Pump	Type		High efficiency, low noise
	Input Power		Kw	1.10	1.10	1.50	1.50
	Head		m	24	23	22	21
Refrigerant	Type		R22
Water tank Indicating Volume			Liter	270	320	360	400
Safety protection			high and low pressure protection, overload protection, over temperature protection, phase sequence protection, etc.
Dimensions (LWH)		Length	mm	1950	2100	2200	2450
		Width	mm	1250	1250	1250	1350
		High	mm	1600	1600	1850	2050
Total Weight			KG	830	1050	1250	1350

Note:

1, the table refrigeration conditions: chilled glycol water inlet temperature 0 ℃, cold water outlet temperature -5 ℃, ambient temperature 35 ℃, the use of ambient temperature range -7 ℃ ~ 43 ℃;

2, this series of units used in low temperature conditions, to use 25% of the glycol for antifreeze coolants;

3, the series unit uses imported from Europe hermetic compressors, superior performance, strong anti-strike capability liquid;

4, standard power supply: 380V / 3N-50HZ, voltage fluctuation allowed ± 10%, frequency fluctuation ± 2%;

5, host the actual head of the pump head minus head losses within the host. (1mH2O = 9.8KPa);

6, In addition to the specifications and requirements, we can provide non-standard products according to customer requirements.

Application: It is mainly used to cool down the chemical reaction kettle (chemical heat exchanger), and take away the huge heat produced by chemical reaction in time so as to achieve the purpose of cooling (cooling), so as to improve the product quality and production efficiency.

No.	Name	Brand	Original
1	Compressor	COPELAND	USA
2	Controller	BANGPU	China
	AC contactor	LG	Korea
	Thermal relay	LG	Korea
3	Heat exchanger	Shenglin	China
	Fan	MAER	China
	Expansion valve	EMERSON	USA
	Expansion valve	DANFOSS	Denmark
	High and low pressure gauge	HONGSEN	China
	Flow switch	KAOBO	China
	Water pump	SOUTH	China
